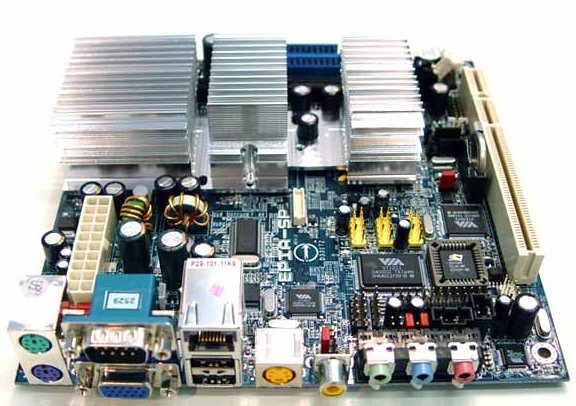

EPIA SP8000 (Fanless) Mini-ITX Motherboard

Processor - VIA Eden 800MHz. Fanless EBGA processor
Chipset - VIA CN400 North Bridge
- VIA VT8237 South Bridge
System Memory - 1 DDR266/333/400 DIMM socket
- Up to 1GB memory size
VGA - Integrated VIA UniChrome Pro AGP graphics with MPEG-2 decoder /MPEG-4 Accelerator
Expansion Slots - 1 PCI
Onboard IDE - 2 X UltraDMA 133/100 Connector
Onboard Serial ATA - 2 SATA Connectors
Onboard LAN - VIA VT6103 10/100 Base-T Ethernet PHY
Onboard Audio - VIA VT1617A 6channel AC' 97 codec
Onboard TV Out - VIA VT1623 TV Encoder
Onboard 1394 - VIA VT6307S IEEE 1394 Firewire
Back Panel I/O - 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 RJ-45 LAN port
- 1 Serial port
- 2 USB 2.0 ports
- 1 VGA port
- 1 PCA port (SPDIF or TV out)
- 1 S-video port
- 3 Audio jacks: line-out, line-in and mic-in (Smart 5.1 Support)
Onboard I/O Connectors - 3 USB connector for 6additional USB 2.0 ports
- 1 1394 connector for 1 1394 port
- 1 Serial port connector for a second com port
- 1 VIP connector
- 1 Front-panel audio connector (Mic-in and Line-out)
- 1 CD audio-in connector
- 1 FIR connector
- 1 CIR connector (Switchable for KB/MS)
- 1 LPT port connector
- 1 Wake-on-LAN connector
- 2 Fan connectors: CPU/Sys FAN
- 1 I2C connector
- 1 LVDS/TTL module connector (Optional)
- 1 +12V power connector
- ATX power connector
BIOS - Award BIOS
- 4/8Mbit flash memory
System Monitoring & Management - CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer Power-on
- System power management
- AC power failure recovery
Operating Temperature 0~50°C
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Form Factor - Mini-ITX (6 layer)
- 17 cm x 17 cm

$250.00
