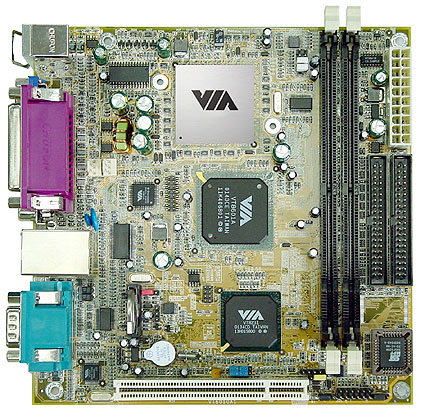

EPIA-800 PLE133 800MHz CPU Include ITX Motherboard CPU Combo [BlowOut]

Like the 5000 the Epia 800 is one of the original Via mini-itx motherboards. It isn't fanless like the 5000 or the ME6000, but it does have a very small and quiet CPU fan. At a very low prise and 800MHz the Epia 800 is a good choice for the embedded hobbyist on a budget.

Form Factor
- Mini-ITX
- 170mm x 170mm
- Micro ATX Chassis Compliant
Processor
- VIA C3 E-Series 800Mhz processor
- 100/133MHz Front Side Bus
- 128K L1 and 64K L2 cache
Chipset
- VIA Apollo PLE133
- VT8601A North Bridge
- Featuring integrated AGP 4X graphics
- VIA VT8231 South Bridge
TV-Out
- High quality scaling and filtering
- S-Video or Composite video output
- Supports NTSC/PAL TV formats
Main Memory - Two 168-pin DIMM memory sockets
- PC100/133 SDRAM support
LAN
- VIA 10/100 Ethernet LAN onboard
Graphics
- Integrated AGP4X with 2D/3D Graphics Acceleration
- Motion Compensation for DVD playback
Audio
- VIA VT1612A AC'97 onboard
- 3 Audio Jacks - Line-Out, Line-In and Microphone-In
- Sound Blaster, Sound Blaster Pro Compatible
- Digital I/O compatible with consumer mode S/PDIF
Expansion Slots
- 1 PCI slot
Onboard IDE
- ATA/100/66
I/O Ports
- 3 Audio Jacks - Line-out, Mic-in and Line-in
- Four USB ports (two USB ports located at rear side)
- 1 EPP/ECP parallel port
- 1 16C550 compatible serial port
- 2 External PS/2 Compatible Keyboard /Mouse ports
- 2 TV output ports (S-Video or optional RCA TV out)
- 1 S/PDIF out (optional and multiplex with RCA TV out)
- 1 RJ-45 LAN port
- 1 PCI slot (Note: support for two PCI devices)
Power Supply
-ATX Power Supply Compliant

$89
