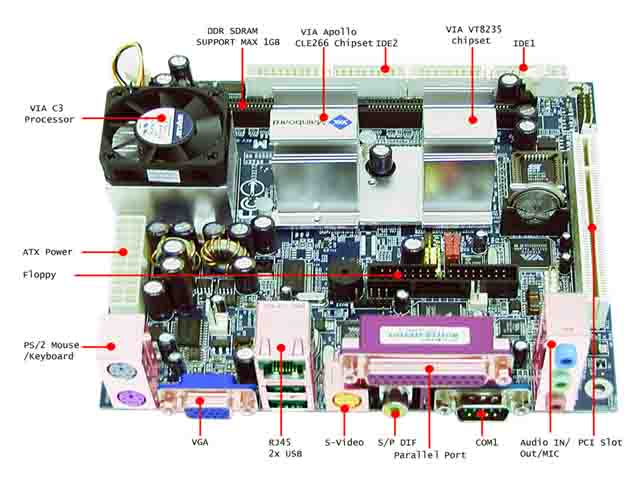

Via EPIA M10000 mini-itx motherboard [BlowOut]

The M10000 is a very good workhorse with the C3 1Ghz Nehemiah Processor and up to 1Gig of DDR266 RAM. I personally use it to build very large databases for the DamnFresh search engine project and I have been very pleased with its performance. Many people use the M10000 in home-brewed PVR project.

Processor
- VIA C3 1Ghz Nehemiah Processor
Chipset
- VIA CLE266 North Bridge
- VT8235 South Bridge
System Memory
- 1 DDR266 DIMM socket
- Up to 1GB memory size
VGA
- Integrated VIA Unichrome AGP graphics with MPEG-2 Accelerator
Expansion Slots
- 1 PCI
Onboard IDE
- 2 X UltraDMA 133/100/66 Connector
Onboard Floppy
- 1 x FDD Connector
Onboard LAN
- VIA VT6103 10/100 Base-T Ethernet PHY
Onboard Audio
- VIA VT1616 6 channel AC'97 Codec
Onboard TV Out
- VIA VT1622 TV out
Onboard 1394
- VIA VT6307S IEEE 1394 Firewire
Onboard I/O Connectors
- 1 USB connectors for 2 additional USB 2.0 ports
- 2 1394 connectors for 2 1394 ports
- Front-panel audio connectors (Mic and Line Out)
- CD Audio-in connector
- FIR connector
- CIR connector
- Wake-on-LAN
- CPU/Sys FAN/Fan 3
- 1 SMBUS connector
- Serial port connector for second com port
Back Panel I/O
- 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 Parallel port
- 1 RJ-45 LAN port
- 1 Serial port
- 2 USB 2.0 ports
- 1 VGA port
- 1 RCA port (SPDIF or TV out)
- 1 S-Video port
- 3 Audio jacks: line-out, line-in and mic-in; can be switched to 6 channel output
BIOS
- Award BIOS
- 2/4Mbit flash memory
System Monitoring & Management
- CPU voltage monitoring
- Wake-on-LAN, Keyboard-Power-on, Timer-Power-on- System power management
- AC power failure recovery
Form Factor
- Mini-ITX (4 layer)
- 17 cm x 17 cm

$120
